Step 2: Inbound Template Request Body (JSON Body)

Request Body Page (JSON Builder)

If the selected Method is other than GET, you have the option to define how you expect the request body to look like. First you need to select the Request Body Format. This page is for when the Request Body Format is “JSON (application/json)”.

NOTE: Just as the callout template will not let you change the Main Object once in the JSON Builder, inbound templates function the same. Once you start mapping fields in the JSON Builder, you CANNOT change the Main Object. If you want to change either of these, you need to remove all values set in the JSON Builder. Then you have the option to update the Main Object. This is by design as the values set in JSON are dependent on the Main Object selected.

About JSON

JSON (JavaScript Object Notation) is a lightweight data-interchange format. It is easy for humans to read and write. It is also easy for machines to parse and generate.

JSON is built on two structures:

• A collection of name/value pairs.
• An ordered list of values.

An object is an unordered set of name/value pairs. An object begins with { (left brace) and ends with } (right brace). Each name is followed by : (colon) and the name/value pairs are separated by , (comma). A value can be a string in double quotes, or a number, or true or false or null, or an object or an array. Exmaple: { “name” : “Maria”, “age” : 30 }

An array is an ordered collection of values. An array begins with [ (left bracket) and ends with ] (right bracket). Values are separated by , (comma). Example: [ “orange”, “apple”, “cherry” ]

These structures can be nested. Example: { “name” : { “first” : “John”, “last” : “Doe” } , “email” : “john@example.com”, “children_age” : [ 12, 8, 3 ] }

More about JSON here: https://www.w3resource.com/JSON/introduction.php

Request Body

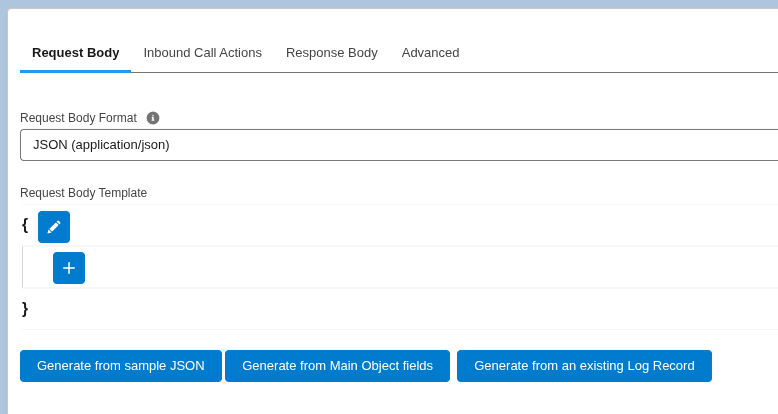

Just as you do in the callout template, here is where you will build the JSON body structure. To get started, select the ‘+’ icon as displayed below:

In the builder, first we need to give our key, or Node Name, a name to define the value.

Then we have options to select either Object, List of Objects, Single Value or List of Values in the Node Type input.

The Node Data Type input allows you to select the expected data type coming into that node. It can be a text, a number or a true/false value.

Create from sample JSON request

If you have a JSON Sample from the API documentation from the app or platform being implemented, you can create your Request Body quickly by utilizing the ‘Generate from sample JSON’ button. You will see the Return Body generated for you. As mentioned, you can also do this manually by creating your Node Name and Node Type, but again, no values or fields will be mapped.

Generate based on fields from Main Object

If you expect the incoming request body to contain field names from the main object, you can use the “Generate from from Main Object fields” button to generate the expected request body.
